Diffraction project datasets PsaeA_01463_a_AE1-ADP-GMP_8egl

  • Resolution: 2.35 Å
  • Space group: P 1
Download all images (1.8 GB)

PDB website for 8EGL
PDB validation report for 8EGL

doi:10.18430/M38EGL

Project details

Title Crystal Structure of Guanylate kinase from Pseudomonas aeruginosa PAO1 in complex with GMP and ADP
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 72.28 x 72.37 x 144.73
Unit cell angles [°] 81.6, 88.0, 60.0

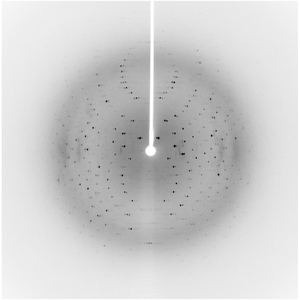

Dataset 320335g7_x2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 60.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

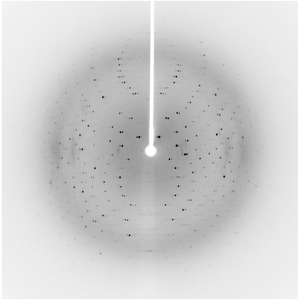

Dataset 320335g7_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 65.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

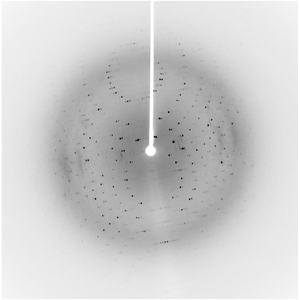

Dataset 320335g7_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 60.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

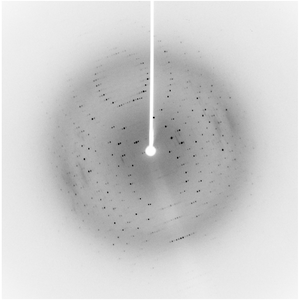

Dataset 320335g7_z_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 60.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
