Diffraction project datasets Prol_delY231_5mc0

Project details

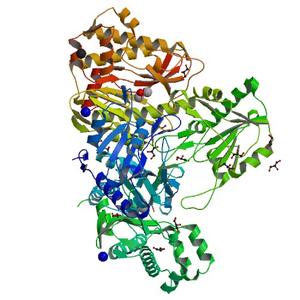

Title Crystal Structure of delTyr231 mutant of Human Prolidase with Mn ions and GlyPro ligand
Authors Wilk, P., Piwowarczyk, R., Uehlein, M., Dobbek, H., Mueller, U., Weiss, M.S.
R / Rfree 0.12 / 0.15
Unit cell edges [Å] 103.94 x 108.11 x 211.93
Unit cell angles [°] 90.0, 90.0, 90.0

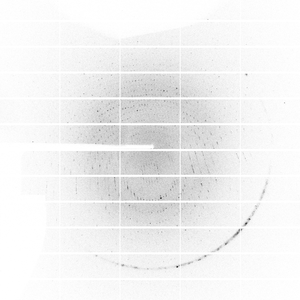

Dataset ProlMut3_RT_A12_C4_infl_2_#####.cbf details

Number of frames 3600 (1 - 3600)
Distance [mm] 141.1
Oscillation width [°] 0.10
Phi [°] 303.28
Wavelength [nm] 1.89313
Experiment Date 2014-10-18
Equipment 14.1 at SRS (Synchrotron Radiation Source)

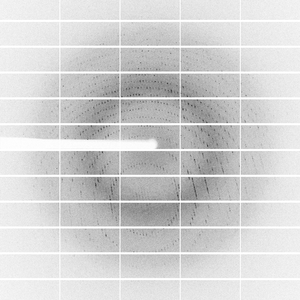

Dataset Prol_Mut3_Mn_GlyPro_Cryo4G_2_#####.cbf details

Number of frames 2000 (1 - 2000)
Distance [mm] 323.7
Oscillation width [°] 0.10
Phi [°] 303.28
Wavelength [nm] 0.91841
Experiment Date 2014-10-17
Equipment 14.1 at SRS (Synchrotron Radiation Source)
