Diffraction project datasets Prol_delY231_5mc0
- Resolution: 1.56 Å
- Space group: C 2 2 21
PDB website for 5MC0
PDB validation report for 5MC0
doi:10.18430/m35mc0
Project details

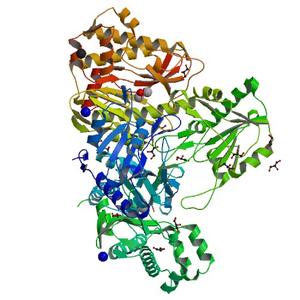

| Title | Crystal Structure of delTyr231 mutant of Human Prolidase with Mn ions and GlyPro ligand |
| Authors | Wilk, P., Mueller, U., Dobbek, H., Weiss, M.S. |
| R / Rfree | 0.12 / 0.15 |
| Unit cell edges [Å] | 103.94 x 108.11 x 211.93 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

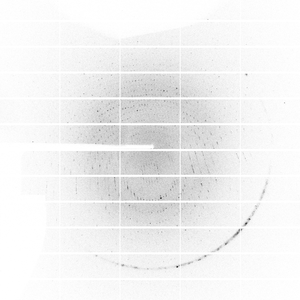

Dataset ProlMut3_RT_A12_C4_infl_2_#####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 141.1 |
| Oscillation width [°] | 0.10 |
| Phi [°] | 303.28 |
| Wavelength [Å] | 1.89313 |
| Experiment Date | 2014-10-18 |
| Equipment | BL14.1 at BESSY II (Bessy II) |

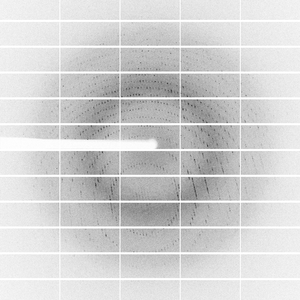

Dataset Prol_Mut3_Mn_GlyPro_Cryo4G_2_#####.cbf details
| Number of frames | 2000 (1 - 2000) |
| Distance [mm] | 323.7 |
| Oscillation width [°] | 0.10 |
| Phi [°] | 303.28 |
| Wavelength [Å] | 0.91841 |
| Experiment Date | 2014-10-17 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
