Diffraction project datasets Prol_S202F_5mbz

Project details

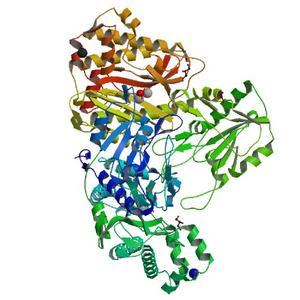

Title Crystal Structure of Ser202Phe mutant of Human Prolidase with Mn ions and GlyPro ligand
Authors Wilk, P., Piwowarczyk, R., Uehlein, M., Dobbek, H., Mueller, U., Weiss, M.S.
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 103.79 x 106.94 x 216.32
Unit cell angles [°] 90.0, 90.0, 90.0

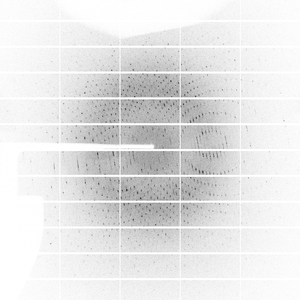

Dataset ProlMut2_Mn_GP_HR_1_#####.cbf details

Number of frames 3600 (1 - 3600)
Distance [mm] 145.0
Oscillation width [°] 0.10
Wavelength [nm] 1.88858
Experiment Date 2014-11-14
Equipment 14.1 at SRS (Synchrotron Radiation Source)

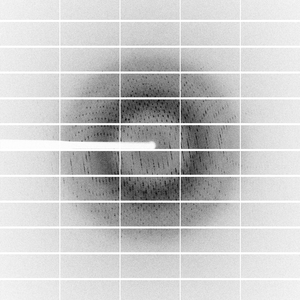

Dataset ProlMut2_Mn_GP_Nat_1_#####.cbf details

Number of frames 2000 (1 - 2000)
Distance [mm] 242.0
Oscillation width [°] 0.10
Wavelength [nm] 0.91841
Experiment Date 2014-11-14
Equipment 14.1 at SRS (Synchrotron Radiation Source)
