Diffraction project datasets ProlWT_MgLP_5m4l

Project details

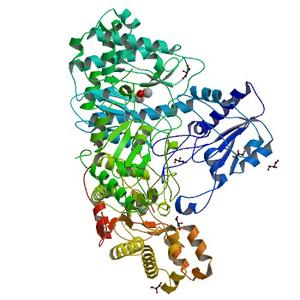

Title Crystal Structure of Wild-Type Human Prolidase with Mg ions and LeuPro ligand
Authors Wilk, P., Weiss, M.S., Mueller, U., Dobbek, H.
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 103.61 x 106.84 x 216.99
Unit cell angles [°] 90.0, 90.0, 90.0

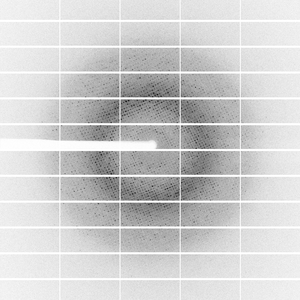

Dataset Prol_wt_Mg_LP_X9_3m15s_1_#####.cbf details

Number of frames 1599 (2 - 1600)
Distance [mm] 283.6
Oscillation width [°] 0.10
Phi [°] 30.6
Wavelength [Å] 0.91841
Experiment Date 2015-10-17
Equipment BL14.1 at BESSY II (Bessy II)
