Diffraction project datasets ProlR470H_MnGP_6qsc
- Resolution: 1.57 Å
- Space group: C 2 2 21
PDB website for 6QSC
PDB validation report for 6QSC
doi:10.18430/m36qsc
Project details

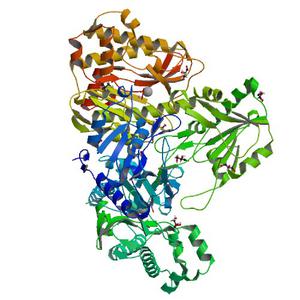

| Title | Crystal Structure of Arg470His mutant of Human Prolidase with Mn ions and GlyPro ligand |
| Authors | Wilk, P., Wator, E., Weiss, M.S. |
| R / Rfree | 0.15 / 0.17 |
| Unit cell edges [Å] | 103.54 x 108.71 x 211.55 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

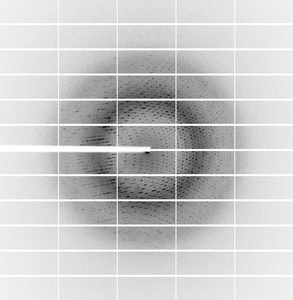

Dataset ProlMut10_MnGP_X2_nat_1_####.cbf details
| Number of frames | 1998 (3 - 2000) |
| Distance [mm] | 266.6 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |

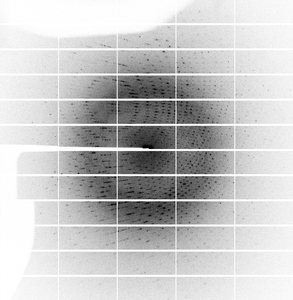

Dataset ProlMut10_MnGP_X2_pk_1_####.cbf details
| Number of frames | 3599 (2 - 3600) |
| Distance [mm] | 147.9 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 1.89000 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
