Diffraction project datasets ProlMut1MnLP_6h2q

  • Resolution: 1.78 Å
  • Space group: C 2 2 21
Download all images (5.7 GB)

PDB website for 6H2Q

doi:10.18430/m36h2q

Project details

Title Crystal Structure of Arg184Gln mutant of Human Prolidase with Mn ions and LeuPro ligand
Authors Wilk, P., Piwowarczyk, R., Weiss, M.S.
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 103.56 x 106.66 x 217.43
Unit cell angles [°] 90.0, 90.0, 90.0

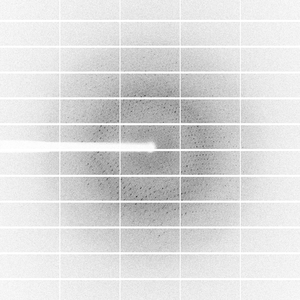

Dataset HsProlMut1_Mn_LP_pH69_nat_1_####.cbf details

Number of frames 1800 (1 - 1800)
Distance [mm] 293.5
Oscillation width [°] 0.10
Phi [°] 356.0
Wavelength [Å] 0.91840
Equipment BL14.1 at BESSY II (Bessy II)

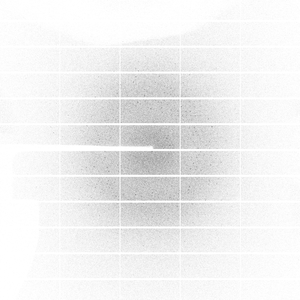

Dataset HsProlMut1_Mn_LP_pH69_pk_2_####.cbf details

Number of frames 3600 (1 - 3600)
Distance [mm] 141.8
Oscillation width [°] 0.10
Phi [°] 356.0
Wavelength [Å] 1.89317
Equipment BL14.1 at BESSY II (Bessy II)
