Diffraction project datasets PlviB_18981_a_SU11-RUBP61_9p74
- Resolution: 2.8 Å
- Space group: C 1 2 1
Uniprot website for A5K0N4
PDB website for 9P74
PDB validation report for 9P74
doi:10.18430/M39P74
Project details
| Title | Crystal Structure of cGMP-dependent protein kinase from Plasmodium vivax in complex with inhibitor RUBP-61 |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.23 / 0.27 |
| Unit cell edges [Å] | 190.17 x 117.35 x 67.31 |
| Unit cell angles [°] | 90.0, 93.6, 90.0 |

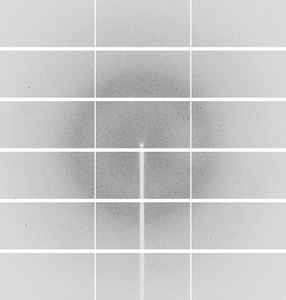

Dataset PSL-1812_2709_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
