Diffraction project datasets PlfaA_01374_a_BC1-MMV019313_9nsr
- Resolution: 3.25 Å
- Space group: P 42 21 2
Uniprot website for Q8II79
PDB website for 9NSR
PDB validation report for 9NSR
doi:10.18430/M39NSR
Project details
| Title | Crystal structure of bifunctional farnesyl/geranylgeranyl pyrophosphate synthase (FPPS/GGPPS) from Plasmodium falciparum in complex with MMV019313 |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.25 / 0.29 |
| Unit cell edges [Å] | 70.69 x 70.69 x 203.82 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

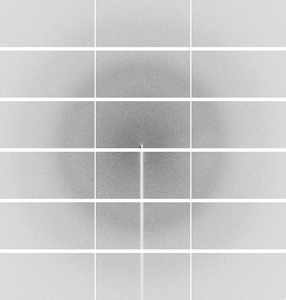

Dataset PSL-2016_6044_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
