Diffraction project datasets PlfaA_01252_a_A13-KG2051_9cmz
- Resolution: 2.45 Å
- Space group: P 1 21 1
Uniprot website for Q8IDW1
PDB website for 9CMZ
PDB validation report for 9CMZ
doi:10.18430/M39CMZ
Project details

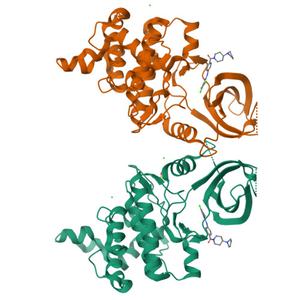

| Title | Crystal Structure of Cdk-related protein kinase 6 (PK6) from Plasmodium falciparum in complex with inhibitor KG2-051 |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 77.54 x 99.43 x 78.15 |
| Unit cell angles [°] | 90.0, 100.8, 90.0 |

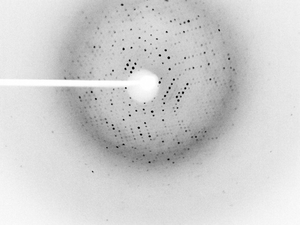

Dataset cu_PlfaA_01252_a_A13_H19HZ_BRK_F7_01_####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 80.0 |
| Omega [°] | 359.9999 |
| Phi [°] | 90.00005 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2024-05-01 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

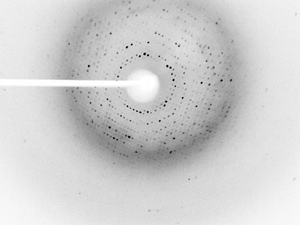

Dataset cu_PlfaA_01252_a_A13_H19HZ_BRK_F7_02_####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 80.0 |
| Omega [°] | 321.805 |
| Phi [°] | 56.68699 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2024-05-01 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
