Diffraction project datasets PlfaA_00487_a3_7s87
- Resolution: 2.75 Å
- Space group: C 2 2 2
PDB website for 7S87
PDB validation report for 7S87
doi:10.18430/m37s87
Project details

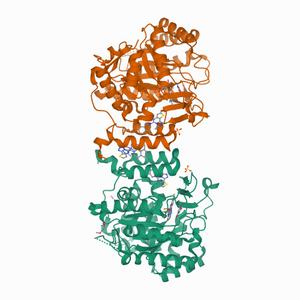

| Title | Crystal Structure of Dihydroorotate dehydrogenase from Plasmodium falciparum in complex with Orotate, FMN, and inhibitor NCGC00600348-01 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.17 / 0.23 |
| Unit cell edges [Å] | 124.73 x 161.09 x 92.57 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

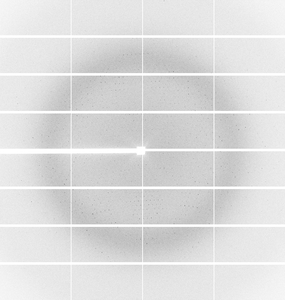

Dataset CPS_5110_7_2_1_######.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 275.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2020-07-12 |
| Equipment | 21-ID-E |
