Diffraction project datasets PX9961L_3jys

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 41 21 2
Download all images (5.5 GB)

PDB website for 3JYS

doi:10.18430/M33JYS

Project details

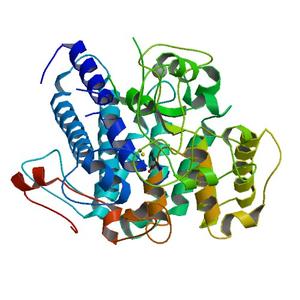

Title Crystal structure of SusD superfamily protein (YP_001298690.1) from Bacteroides vulgatus ATCC 8482 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 63.93 x 63.93 x 266.40
Unit cell angles [°] 90.0, 90.0, 90.0

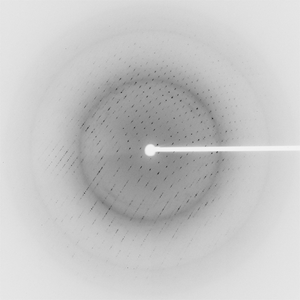

Dataset 120358_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 45.0
Wavelength [Å] 0.97936
Experiment Date 2009-05-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 120358_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 45.0
Wavelength [Å] 0.91162
Experiment Date 2009-05-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
