Diffraction project datasets PX9961H_3ihv

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (8.1 GB)

PDB website for 3IHV
PDB validation report for 3IHV

doi:10.18430/M33IHV

Project details

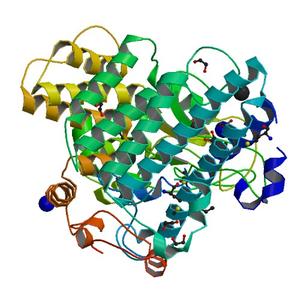

Title Crystal structure of SusD homolog (NP_813570.1) from Bacteroides thetaiotaomicron VPI-5482 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 62.91 x 72.32 x 131.63
Unit cell angles [°] 90.0, 97.3, 90.0

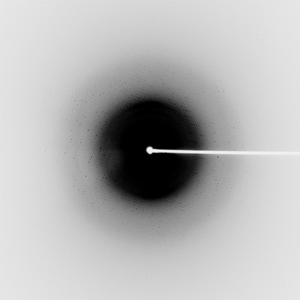

Dataset 118866_1_E1_###.mccd details

Number of frames 185 (1 - 185)
Distance [mm] 180.0
Oscillation width [°] 1.00
Phi [°] 40.0
Wavelength [Å] 0.97864
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

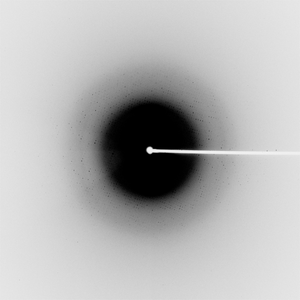

Dataset 118866_1_E2_###.mccd details

Number of frames 185 (1 - 185)
Distance [mm] 180.0
Oscillation width [°] 1.00
Phi [°] 40.0
Wavelength [Å] 0.91837
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

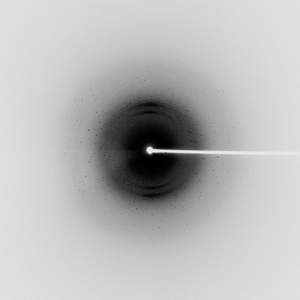

Dataset 118866_2_###.mccd details

Number of frames 370 (1 - 370)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 40.0
Wavelength [Å] 0.97806
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
