Diffraction project datasets PX9937I_3nqp

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: C 1 2 1
Download all images (5.1 GB)

PDB website for 3NQP
PDB validation report for 3NQP

doi:10.18430/M33NQP

Project details

Title Crystal structure of a SusD superfamily protein (BF1802) from Bacteroides fragilis NCTC 9343 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 129.09 x 87.96 x 107.04
Unit cell angles [°] 90.0, 93.4, 90.0

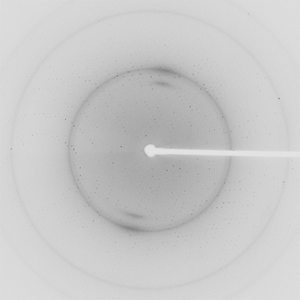

Dataset 137144_1_E1_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 29.0
Wavelength [Å] 0.97937
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

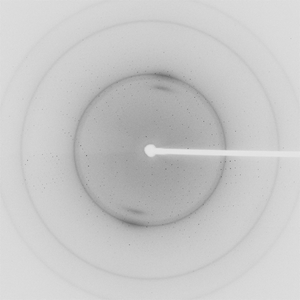

Dataset 137144_1_E2_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 29.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

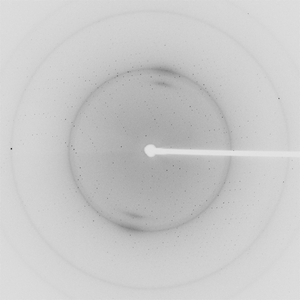

Dataset 137144_2_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 29.0
Wavelength [Å] 0.97904
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
