Diffraction project datasets PX9615D_3obe

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1
Download all images (10.2 GB)

PDB website for 3OBE

doi:10.18430/M33OBE

Project details

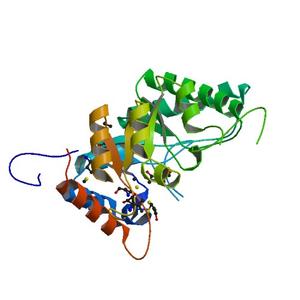

Title Crystal structure of a sugar phosphate isomerase/epimerase (BDI_3400) from Parabacteroides distasonis ATCC 8503 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 45.74 x 48.69 x 79.88
Unit cell angles [°] 77.8, 74.7, 68.9

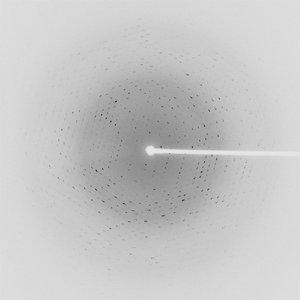

Dataset 140663_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 160.0
Wavelength [Å] 0.97944
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

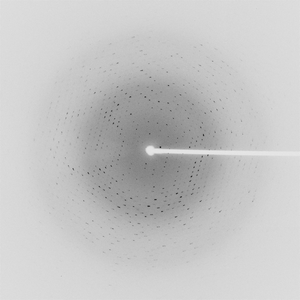

Dataset 140663_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 160.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

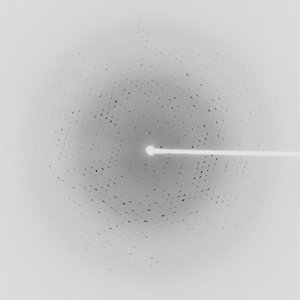

Dataset 140663_2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 160.0
Wavelength [Å] 0.97910
Experiment Date 2009-12-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
