Diffraction project datasets PX8928B_3iib

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: C 1 2 1
Download all images (4.7 GB)

PDB website for 3IIB
PDB validation report for 3IIB

doi:10.18430/M33IIB

Project details

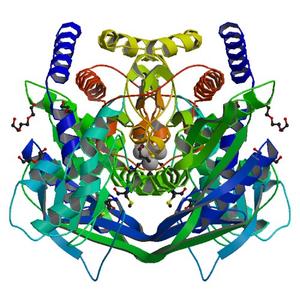

Title Crystal structure of Peptidase M28 precursor (YP_926796.1) from SHEWANELLA AMAZONENSIS SB2B at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 90.44 x 84.87 x 80.11
Unit cell angles [°] 90.0, 115.9, 90.0

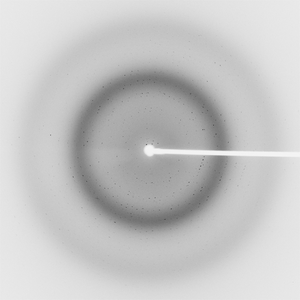

Dataset 117155_1_E1_###.mccd details

Number of frames 121 (1 - 121)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.97879
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

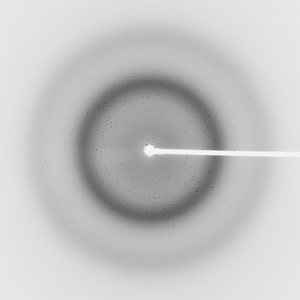

Dataset 117155_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.91837
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

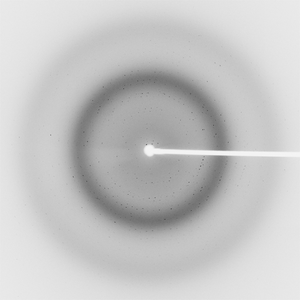

Dataset 117155_2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.97791
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
