Diffraction project datasets PX8761B_3hoi

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: P 61 2 2
Download all images (8.5 GB)

PDB website for 3HOI
PDB validation report for 3HOI

doi:10.18430/M33HOI

Project details

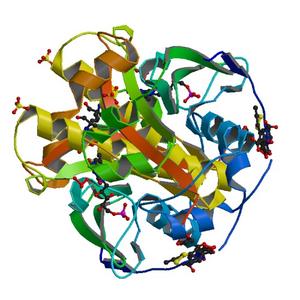

Title Crystal structure of FMN-dependent nitroreductase BF3017 from Bacteroides fragilis NCTC 9343 (YP_212631.1) from Bacteroides fragilis NCTC 9343 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 48.87 x 48.87 x 295.19
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset 113777_1_E1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 271.0
Wavelength [Å] 0.97929
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

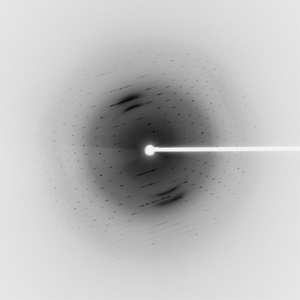

Dataset 113777_1_E2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 271.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

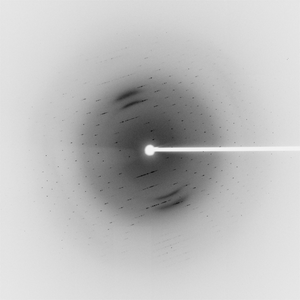

Dataset 113777_2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 271.0
Wavelength [Å] 0.97905
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
