Diffraction project datasets PX5662A_3k11
Project details
| Title |

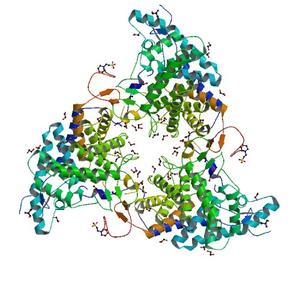

Crystal structure of Putative glycosyl hydrolase (NP_813087.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.80 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
121.14 x
121.14 x
182.81
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

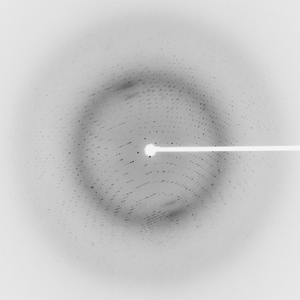

Dataset 119347_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
48.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-05-15 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

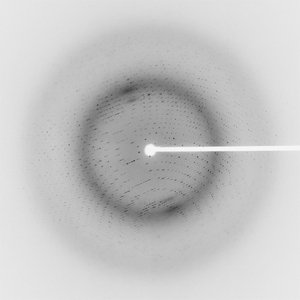

Dataset 119347_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
48.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-15 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

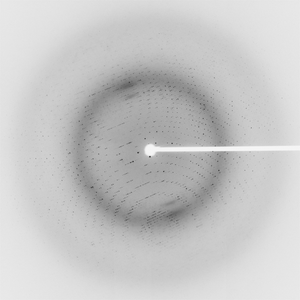

Dataset 119347_2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
48.0 |
| Wavelength [Å] |
0.97919 |
| Experiment Date |
2009-05-15 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
