Diffraction project datasets PX5552B_3kkg

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 65 2 2
Download all images (3.2 GB)

PDB website for 3KKG
PDB validation report for 3KKG

doi:10.18430/M33KKG

Project details

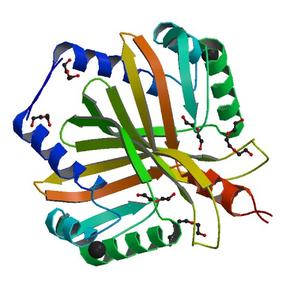

Title Crystal structure of Putative SnoaL-like polyketide cyclase (YP_509242.1) from Jannaschia Sp. CCS1 at 1.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 57.04 x 57.04 x 181.14
Unit cell angles [°] 90.0, 90.0, 120.0

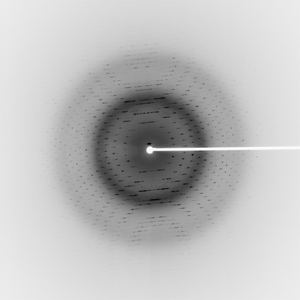

Dataset 130763_1_E1_###.mccd details

Number of frames 80 (1 - 80)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 275.0
Wavelength [Å] 0.97925
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

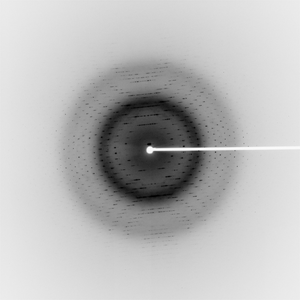

Dataset 130763_1_E2_###.mccd details

Number of frames 80 (1 - 80)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 275.0
Wavelength [Å] 0.91162
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 130763_2_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 275.0
Wavelength [Å] 0.97911
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
