Diffraction project datasets PX4068D_3mz2

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: P 1 21 1
Download all images (6.2 GB)

PDB website for 3MZ2
PDB validation report for 3MZ2

doi:10.18430/M33MZ2

Project details

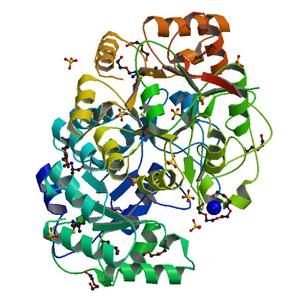

Title Crystal structure of a Glycerophosphoryl diester phosphodiesterase (BDI_3922) from Parabacteroides distasonis ATCC 8503 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 53.58 x 90.48 x 60.37
Unit cell angles [°] 90.0, 112.0, 90.0

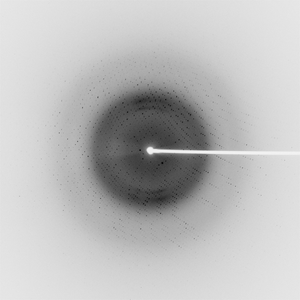

Dataset 141352_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 254.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

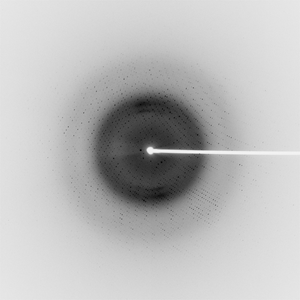

Dataset 141352_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 254.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

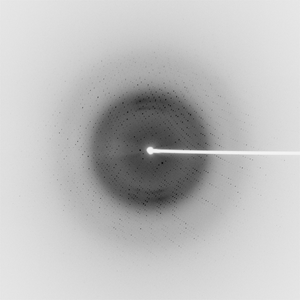

Dataset 141352_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 254.0
Wavelength [Å] 0.97895
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
