Diffraction project datasets PX3261F_3n0w
Project details
| Title |

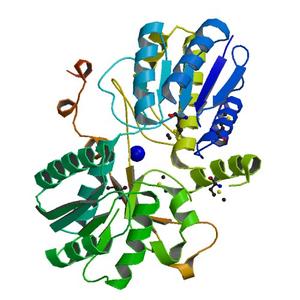

Crystal structure of a branched chain amino acid ABC transporter periplasmic ligand-binding protein (Bxe_C0949) from BURKHOLDERIA XENOVORANS LB400 at 1.88 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.23 |
| Unit cell edges [Å] |
48.54 x
58.27 x
145.34
|
| Unit cell angles [°] |
90.0,
99.0,
90.0
|

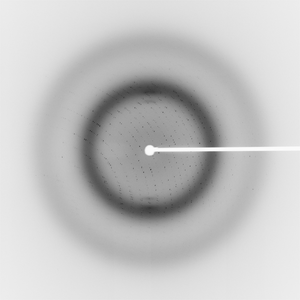

Dataset 146947_1_E1_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
255.0 |
| Wavelength [Å] |
0.97915 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

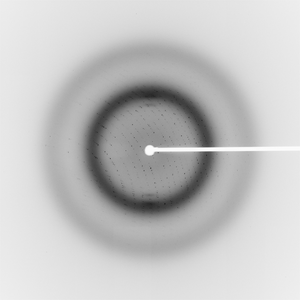

Dataset 146947_1_E2_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
255.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

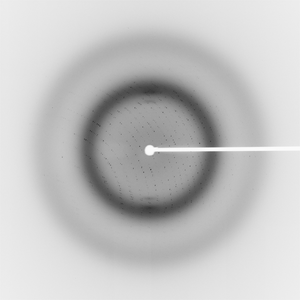

Dataset 146947_2_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
255.0 |
| Wavelength [Å] |
0.97898 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
