Diffraction project datasets PX3261D_3i09

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 1 21 1
Download all images (7.1 GB)

PDB website for 3I09
PDB validation report for 3I09

doi:10.18430/M33I09

Project details

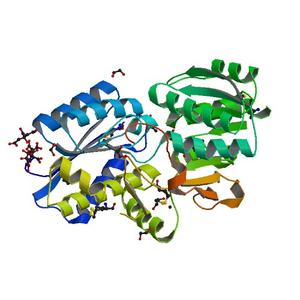

Title CRYSTAL STRUCTURE OF A PERIPLASMIC BINDING PROTEIN (BMA2936) FROM BURKHOLDERIA MALLEI AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 58.26 x 81.15 x 74.00
Unit cell angles [°] 90.0, 92.9, 90.0

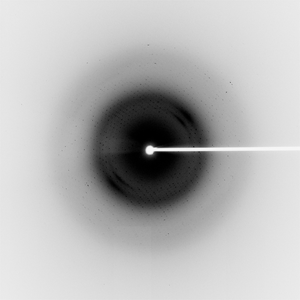

Dataset 112971_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 15.0
Wavelength [Å] 0.97925
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

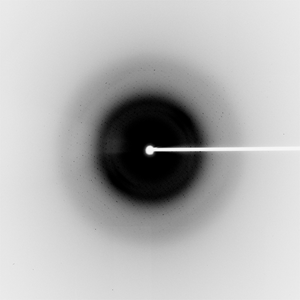

Dataset 112971_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 15.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 112971_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 15.0
Wavelength [Å] 0.97903
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
