Diffraction project datasets PX15618B_3l22

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 43 2 2
Download all images (3.0 GB)

PDB website for 3L22

doi:10.18430/M33L22

Project details

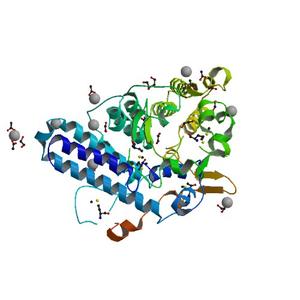

Title CRYSTAL STRUCTURE OF A SUSD SUPERFAMILY PROTEIN (BF_0597) FROM BACTEROIDES FRAGILIS AT 2.05 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 94.03 x 94.03 x 201.58
Unit cell angles [°] 90.0, 90.0, 90.0

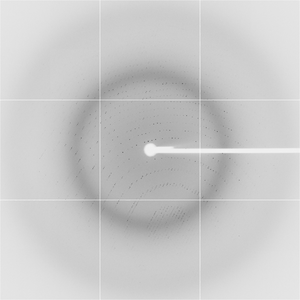

Dataset 131821_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 0.75
Phi [°] 31.0
Wavelength [Å] 0.97937
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

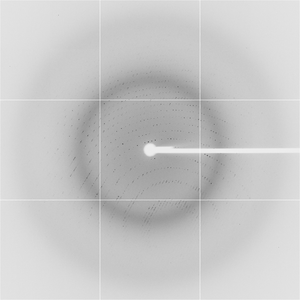

Dataset 131821_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 0.75
Phi [°] 31.0
Wavelength [Å] 0.91837
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

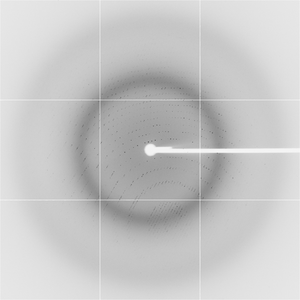

Dataset 131821_2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 260.0
Oscillation width [°] 0.75
Phi [°] 31.0
Wavelength [Å] 0.97893
Equipment BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
