Diffraction project datasets PX15618A_3iv0
Project details
| Title |

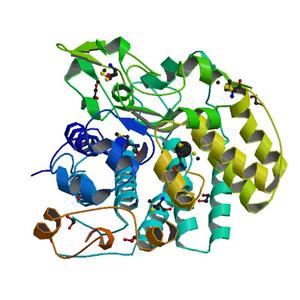

Crystal structure of SusD homolog (NP_809186.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.35 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
50.65 x
74.37 x
67.38
|
| Unit cell angles [°] |
90.0,
111.6,
90.0
|

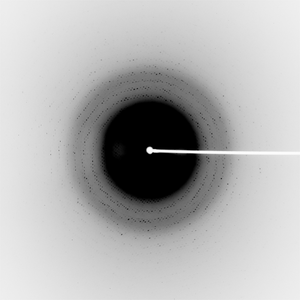

Dataset 119192_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
78.0 |
| Wavelength [Å] |
0.97848 |
| Experiment Date |
2009-04-16 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

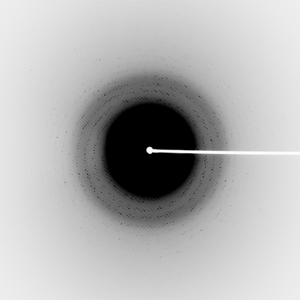

Dataset 119192_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
78.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-04-16 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

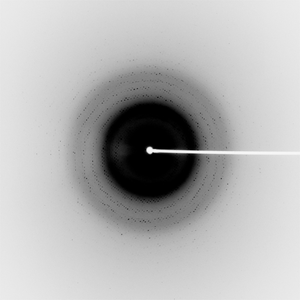

Dataset 119192_2_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
78.0 |
| Wavelength [Å] |
0.97848 |
| Experiment Date |
2009-04-16 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

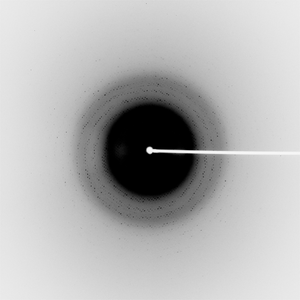

Dataset 119192_2_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
78.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-04-16 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

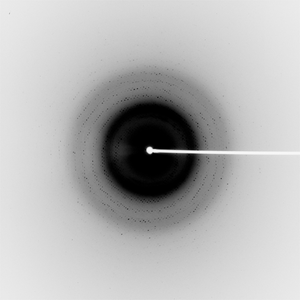

Dataset 119192_3_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
78.0 |
| Wavelength [Å] |
0.97787 |
| Experiment Date |
2009-04-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
