Diffraction project datasets PX15502A_3kst

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (3.7 GB)

PDB website for 3KST
PDB validation report for 3KST

doi:10.18430/M33KST

Project details

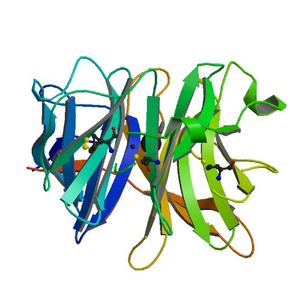

Title Crystal structure of Endo-1,4-beta-xylanase (NP_811807.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 60.02 x 90.34 x 60.04
Unit cell angles [°] 90.0, 93.8, 90.0

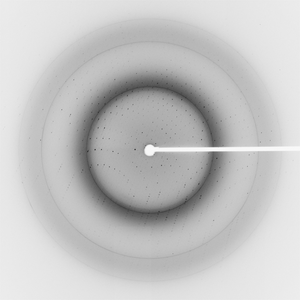

Dataset 114256_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.97929
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

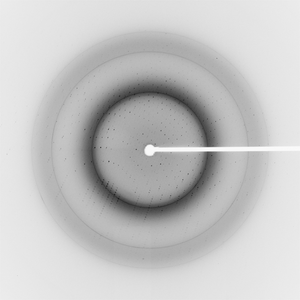

Dataset 114256_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.89841
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 114256_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.97915
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
