Diffraction project datasets PX15447A_4kw2

  • Method: MAD
  • Resolution: 2.32 Å
  • Space group: F 4 3 2
Download all images (4.0 GB)

PDB website for 4KW2
PDB validation report for 4KW2

doi:10.18430/M34KW2

Project details

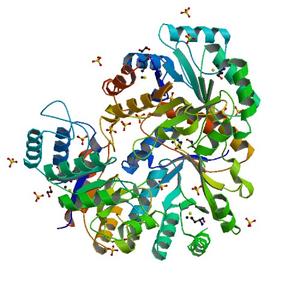

Title Crystal structure of a Putative uncharacterized protein (BDI_1873) from Parabacteroides distasonis ATCC 8503 at 2.32 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 200.10 x 200.10 x 200.10
Unit cell angles [°] 90.0, 90.0, 90.0

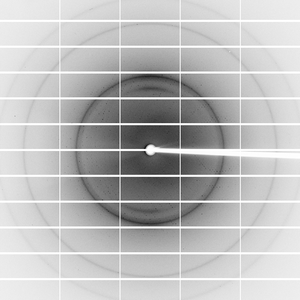

Dataset 158220_1_E1_#####.cbf details

Number of frames 362 (1 - 362)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.97870
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

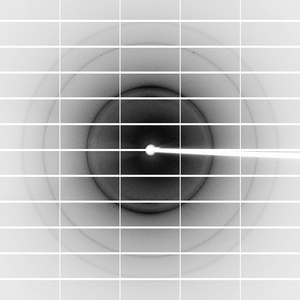

Dataset 158220_1_E2_#####.cbf details

Number of frames 362 (1 - 362)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.84340
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

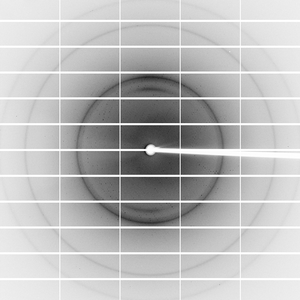

Dataset 158220_2_#####.cbf details

Number of frames 362 (1 - 362)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.96911
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
