Diffraction project datasets PX14375D_3jq1

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: P 21 21 21
Download all images (6.7 GB)

PDB website for 3JQ1
PDB validation report for 3JQ1

doi:10.18430/M33JQ1

Project details

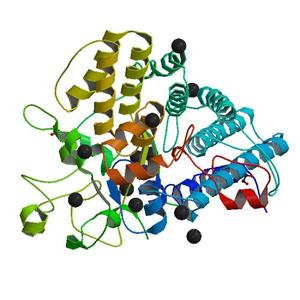

Title Crystal structure of SusD superfamily protein (YP_001297730.1) from Bacteroides vulgatus ATCC 8482 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 65.65 x 94.69 x 165.04
Unit cell angles [°] 90.0, 90.0, 90.0

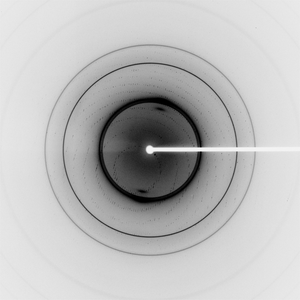

Dataset 119241_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 326.0
Wavelength [Å] 0.97956
Experiment Date 2009-05-07
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

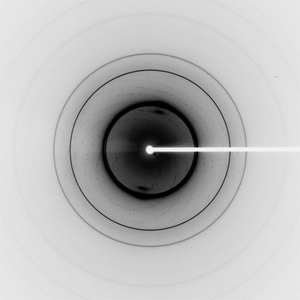

Dataset 119241_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 326.0
Wavelength [Å] 0.91162
Experiment Date 2009-05-07
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

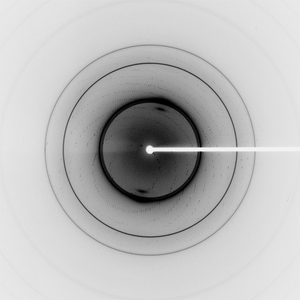

Dataset 119241_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 326.0
Wavelength [Å] 0.97938
Experiment Date 2009-05-08
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
