Diffraction project datasets PX14367B_3lew
Project details
| Title |

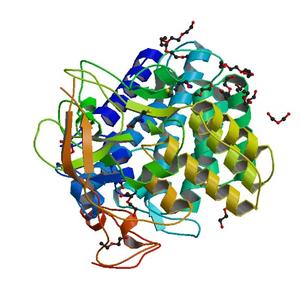

Crystal structure of SusD-like carbohydrate binding protein (YP_001298396.1) from Bacteroides vulgatus ATCC 8482 at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
191.77 x
46.71 x
73.52
|
| Unit cell angles [°] |
90.0,
106.6,
90.0
|

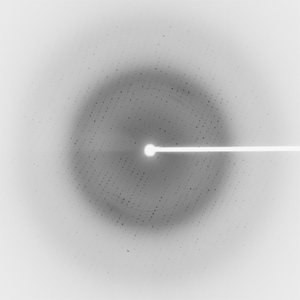

Dataset 139776_1_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
0.97954 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

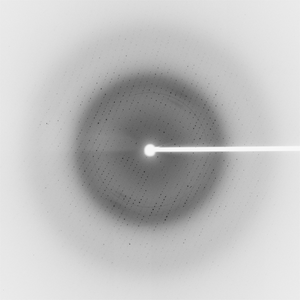

Dataset 139776_1_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
