Diffraction project datasets PX14367A_3snx

  • Method: MAD
  • Resolution: 1.88 Å
  • Space group: P 1 21 1
Download all images (10.9 GB)

PDB website for 3SNX
PDB validation report for 3SNX

doi:10.18430/M33SNX

Project details

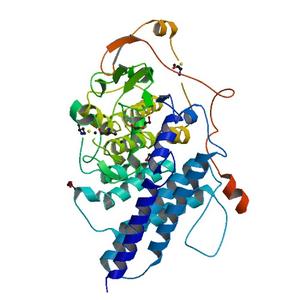

Title Crystal structure of a PUTATIVE SUSD-LIKE CARBOHYDRATE BINDING PROTEIN (BT_1439) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.88 A resolution
Authors Joint center for structural genomics (jcsg)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 64.11 x 114.45 x 67.66
Unit cell angles [°] 90.0, 90.0, 90.0

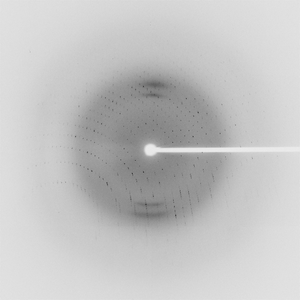

Dataset 155043_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.97932
Experiment Date 2010-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

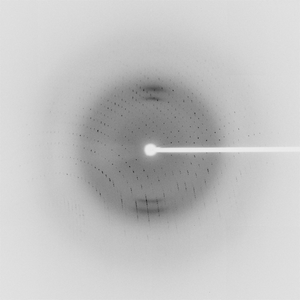

Dataset 155043_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.91837
Experiment Date 2010-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

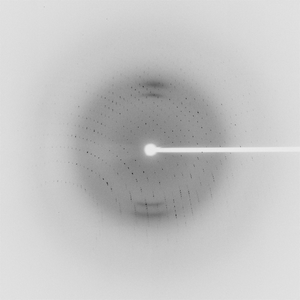

Dataset 155043_2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.97913
Experiment Date 2010-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
