Diffraction project datasets PX14343H_3otn

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 21 21 21
Download all images (3.8 GB)

PDB website for 3OTN
PDB validation report for 3OTN

doi:10.18430/M33OTN

Project details

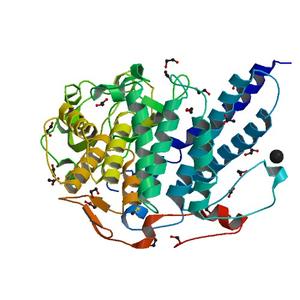

Title Crystal structure of a SusD superfamily protein (BDI_3964) from Parabacteroides distasonis ATCC 8503 at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.19
Unit cell edges [Å] 74.74 x 92.48 x 152.10
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 138060_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.97918
Experiment Date 2010-07-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

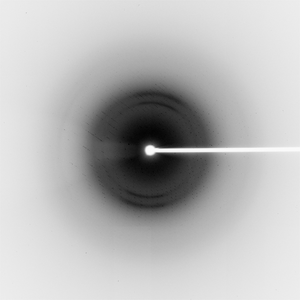

Dataset 138060_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.91162
Experiment Date 2010-07-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

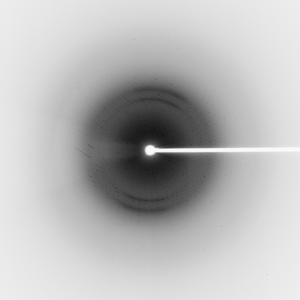

Dataset 138060_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.97896
Experiment Date 2010-07-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
