Diffraction project datasets PX14343B_3i4g

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 21 21 21
Download all images (6.9 GB)

PDB website for 3I4G
PDB validation report for 3I4G

doi:10.18430/M33I4G

Project details

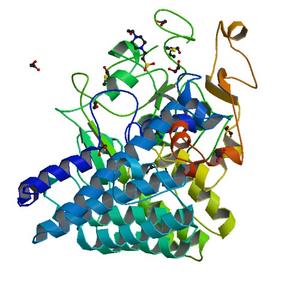

Title CRYSTAL STRUCTURE OF A SUSD-LIKE CARBOHYDRATE BINDING PROTEIN (BF0978) FROM BACTEROIDES FRAGILIS NCTC 9343 AT 1.35 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 47.69 x 66.42 x 162.74
Unit cell angles [°] 90.0, 90.0, 90.0

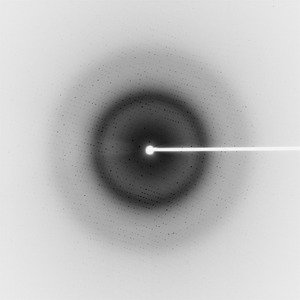

Dataset 113239_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 340.0
Wavelength [Å] 0.97932
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

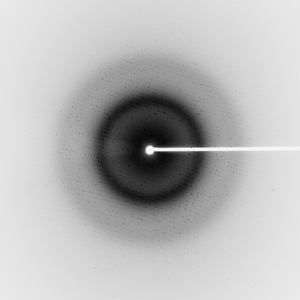

Dataset 113239_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 340.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

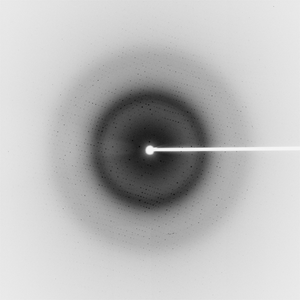

Dataset 113239_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 340.0
Wavelength [Å] 0.97918
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
