Diffraction project datasets PX11702A_3h51
- Method: MAD
- Resolution: 1.7 Å
- Space group: P 1 21 1
PDB website for 3H51
PDB validation report for 3H51
doi:10.18430/M33H51
Project details

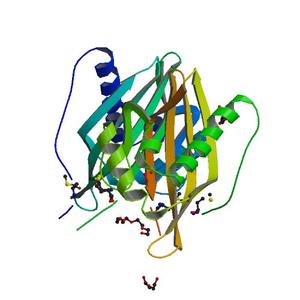

| Title | Crystal structure of Putative calcium/calmodulin dependent protein kinase II association domain (NP_636218.1) from XANTHOMONAS CAMPESTRIS at 1.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 38.83 x 80.55 x 51.43 |
| Unit cell angles [°] | 90.0, 95.6, 90.0 |

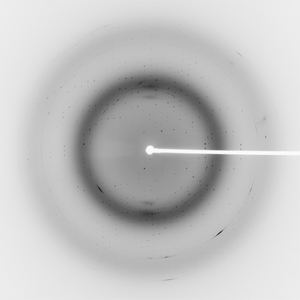

Dataset 110519_1_E1_###.mccd details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 23.0 |
| Wavelength [Å] | 0.97901 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

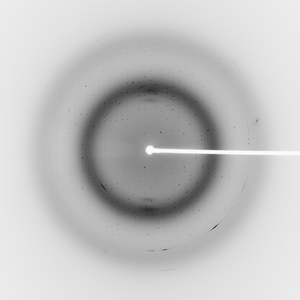

Dataset 110519_1_E2_###.mccd details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 23.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-02-18 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
