Diffraction project datasets PX0383C_3m5k

  • Method: MAD
  • Resolution: 1.86 Å
  • Space group: P 43 3 2
Download all images (4.0 GB)

PDB website for 3M5K
PDB validation report for 3M5K

doi:10.18430/M33M5K

Project details

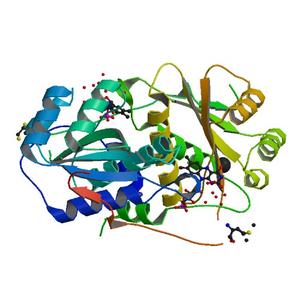

Title Crystal structure of Putative NADH dehydrogenase/NAD(P)H nitroreductase (BDI_1728) from Parabacteroides distasonis ATCC 8503 at 1.86 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 149.64 x 149.64 x 149.64
Unit cell angles [°] 90.0, 90.0, 90.0

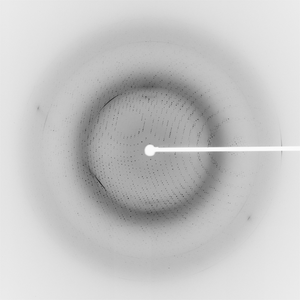

Dataset 138021_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 43.0
Wavelength [Å] 0.97946
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

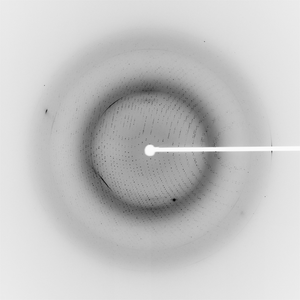

Dataset 138021_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 43.0
Wavelength [Å] 0.91837
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

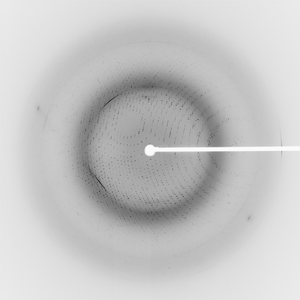

Dataset 138021_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 43.0
Wavelength [Å] 0.97932
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
