Diffraction project datasets PU8575A_3iuz

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: I 4 2 2
Download all images (3.0 GB)

PDB website for 3IUZ
PDB validation report for 3IUZ

doi:10.18430/M33IUZ

Project details

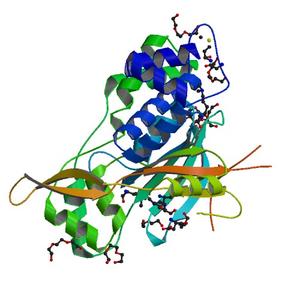

Title Crystal structure of Putative glyoxalase superfamily protein (YP_299723.1) from RALSTONIA EUTROPHA JMP134 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 114.07 x 114.07 x 133.52
Unit cell angles [°] 90.0, 90.0, 90.0

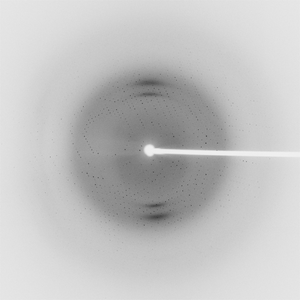

Dataset 117797_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 223.0
Wavelength [Å] 0.97860
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

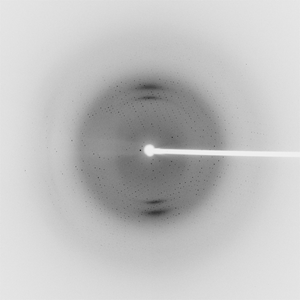

Dataset 117797_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 223.0
Wavelength [Å] 0.91837
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

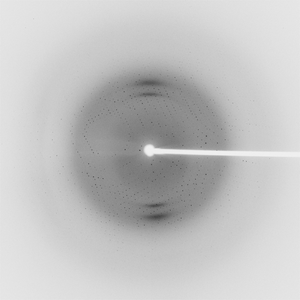

Dataset 117797_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 223.0
Wavelength [Å] 0.97806
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
