Diffraction project datasets PU8365B_3c8l
Project details
| Title |

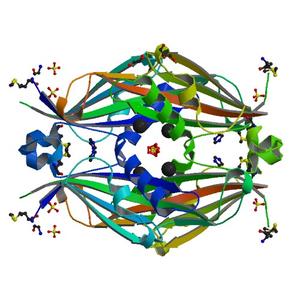

Crystal structure of a ftsz-like protein of unknown function (npun_r1471) from nostoc punctiforme pcc 73102 at 1.22 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.18 |
| Unit cell edges [Å] |
75.42 x
78.63 x
75.04
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

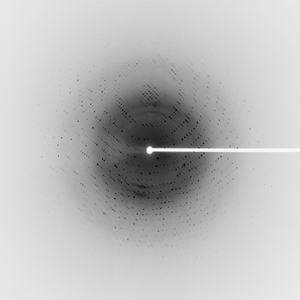

Dataset 73676_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
348.0 |
| Wavelength [Å] |
0.97978 |
| Experiment Date |
2008-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

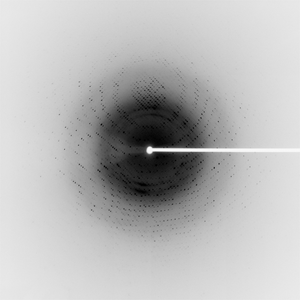

Dataset 73676_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
348.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

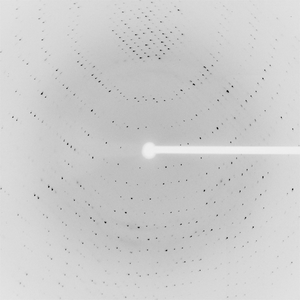

Dataset 73676_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
348.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

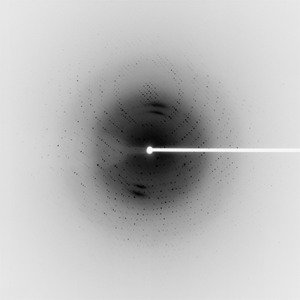

Dataset 73676_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
348.0 |
| Wavelength [Å] |
0.97964 |
| Experiment Date |
2008-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
