Diffraction project datasets PU6502A_3luu
Project details
| Title |

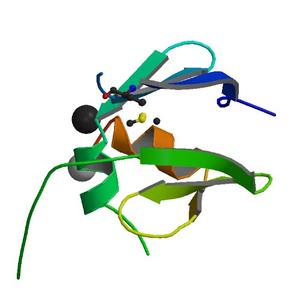

Crystal structure of Protein with unknown function which belongs to Pfam DUF971 family (AFE_2189) from Acidithiobacillus ferrooxidans ATCC 23270 at 1.93 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.22 |
| Unit cell edges [Å] |
82.94 x
82.94 x
32.81
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

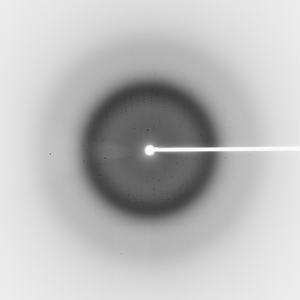

Dataset 146092_1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
176.0 |
| Wavelength [Å] |
0.97876 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

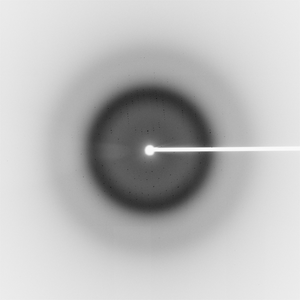

Dataset 146092_2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
176.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

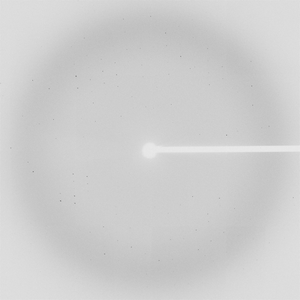

Dataset 146092zn_1_E1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
44.0 |
| Wavelength [Å] |
1.28610 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

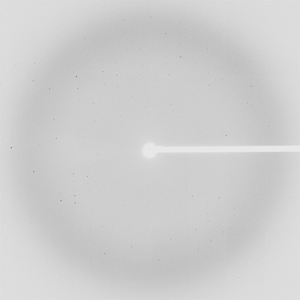

Dataset 146092zn_1_E2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
44.0 |
| Wavelength [Å] |
1.28079 |
| Experiment Date |
2010-01-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
