Diffraction project datasets PU6423E_3e49
Project details
| Title |

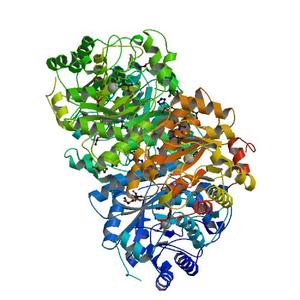

Crystal structure of a prokaryotic domain of unknown function (duf849) with a tim barrel fold (bxe_c0966) from burkholderia xenovorans lb400 at 1.75 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
59.49 x
68.28 x
83.95
|
| Unit cell angles [°] |
70.0,
88.1,
72.8
|
Dataset 89078_1_E1_###.mccd details
| Number of frames |
370 (1 - 370) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.65 |
| Phi [°] |
67.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2008-07-16 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

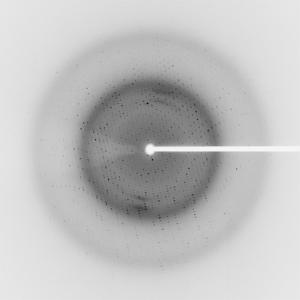

Dataset 89078_1_E2_###.mccd details
| Number of frames |
370 (1 - 370) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.65 |
| Phi [°] |
67.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-07-17 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

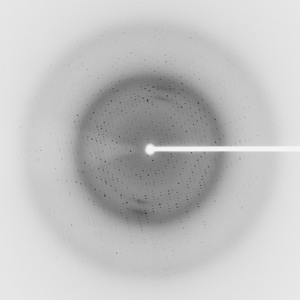

Dataset 89078_2_###.mccd details
| Number of frames |
370 (1 - 370) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.65 |
| Phi [°] |
67.0 |
| Wavelength [Å] |
0.97892 |
| Experiment Date |
2008-07-17 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
