Diffraction project datasets PU6399C_3hsa
- Method: MAD
- Resolution: 1.99 Å
- Space group: P 21 21 21
PDB website for 3HSA
doi:10.18430/M33HSA
Project details

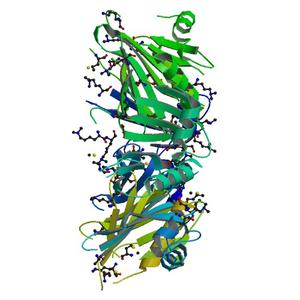

| Title | Crystal structure of pleckstrin homology domain (YP_926556.1) from SHEWANELLA AMAZONENSIS SB2B at 1.99 A resolution |
| Authors | Xu, Q., Bateman, A., Finn, R.D., Abdubek, P., Astakhova, T., Axelrod, H.L., Bakolitsa, C., Carlton, D., Chen, C., Chiu, H.J., Chiu, M., Clayton, T., Das, D., Deller, M.C., Duan, L., Ellrott, K., Ernst, D., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Wooten, T., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 33.23 x 129.49 x 138.73 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

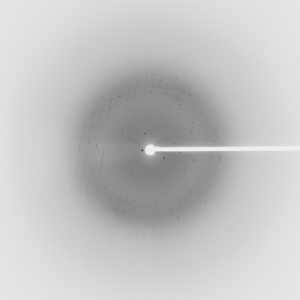

Dataset 121229_1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 275.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 93.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2009-05-14 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
