Diffraction project datasets PU6314B_3byq
- Method: SAD
- Resolution: 1.7 Å
- Space group: C 2 2 21
PDB website for 3BYQ
PDB validation report for 3BYQ
doi:10.18430/M33BYQ
Project details

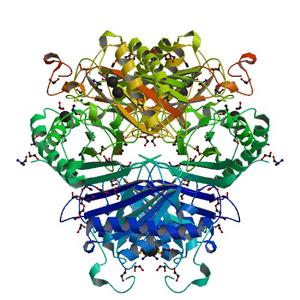

| Title | Crystal structure of a duf1185 family protein (bb2672) from bordetella bronchiseptica rb50 at 1.70 A resolution |
| Authors | Bakolitsa, C., Kumar, A., Jin, K.K., McMullan, D., Krishna, S.S., Miller, M.D., Abdubek, P., Acosta, C., Astakhova, T., Axelrod, H.L., Burra, P., Carlton, D., Chen, C., Chiu, H.J., Clayton, T., Das, D., Deller, M.C., Duan, L., Elias, Y., Ellrott, K., Ernst, D., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Grzechnik, S.K., Han, G.W., Jaroszewski, L., Johnson, H.A., Klock, H.E., Knuth, M.W., Kozbial, P., Marciano, D., Morse, A.T., Murphy, K.D., Nigoghossian, E., Nopakun, A., Okach, L., Paulsen, J., Puckett, C., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H.J., Trame, C.B., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 96.54 x 133.13 x 92.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

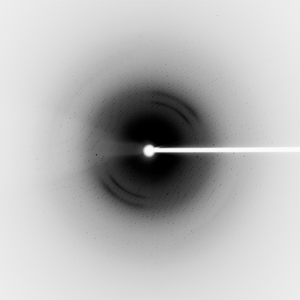

Dataset 68772_1_###.mccd details
| Number of frames | 126 (1 - 126) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 355.0 |
| Wavelength [Å] | 0.97912 |
| Experiment Date | 2007-12-05 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
