Diffraction project datasets PU6311C_3g7p
- Method: MAD
- Resolution: 2.0 Å
- Space group: P 61 2 2
PDB website for 3G7P
PDB validation report for 3G7P
doi:10.18430/M33G7P
Project details

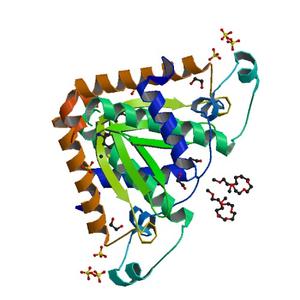

| Title | Crystal structure of a nifx-associated protein of unknown function (afe_1514) from acidithiobacillus ferrooxidans atcc at 2.00 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 49.29 x 49.29 x 254.02 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

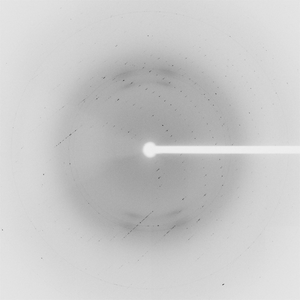

Dataset 104978_1_E1_###.mccd details
| Number of frames | 122 (1 - 122) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 96.0 |
| Wavelength [Å] | 0.97925 |
| Experiment Date | 2009-01-08 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

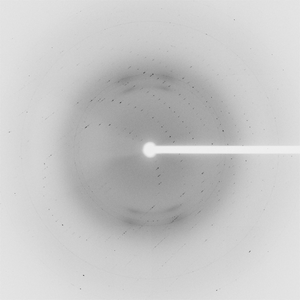

Dataset 104978_1_E2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 96.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-01-08 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
