Diffraction project datasets PU4030C_3e8s

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 64
Download all images (7.6 GB)

PDB website for 3E8S
PDB validation report for 3E8S

doi:10.18430/M33E8S

Project details

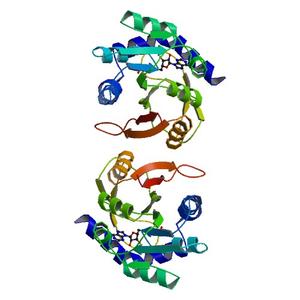

Title Crystal structure of Putative SAM Dependent Methyltransferase in Complex with SAH (NP_744700.1) from PSEUDOMONAS PUTIDA KT2440 at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 130.43 x 130.43 x 54.43
Unit cell angles [°] 90.0, 90.0, 120.0

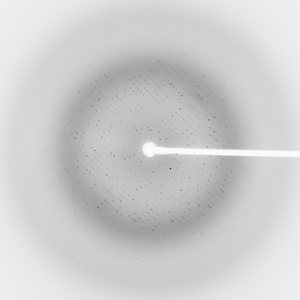

Dataset 91286_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 333.0
Wavelength [Å] 0.97920
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

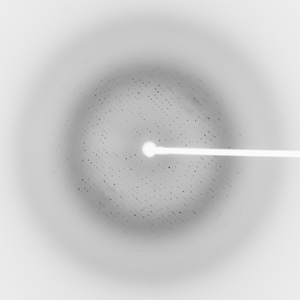

Dataset 91286_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 333.0
Wavelength [Å] 0.91837
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

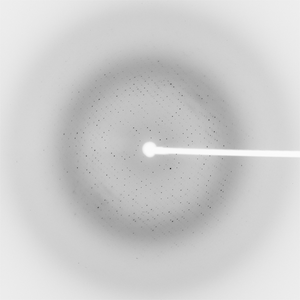

Dataset 91286_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 333.0
Wavelength [Å] 0.97845
Experiment Date 2008-08-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
