Diffraction project datasets PU10421C_3k1t
Project details
| Title |
Crystal structure of Putative gamma-glutamylcysteine synthetase (YP_546622.1) from METHYLOBACILLUS FLAGELLATUS KT at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.15 / 0.16 |
| Unit cell edges [Å] |
175.72 x
175.72 x
175.72
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

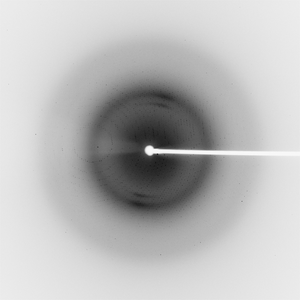

Dataset 125749_1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
147.0 |
| Wavelength [Å] |
0.97882 |
| Experiment Date |
2009-07-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

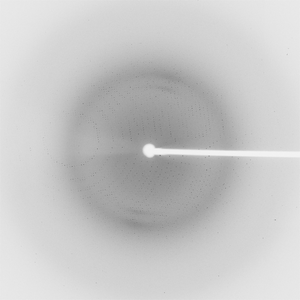

Dataset 125749_2_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
147.0 |
| Wavelength [Å] |
0.97882 |
| Experiment Date |
2009-07-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

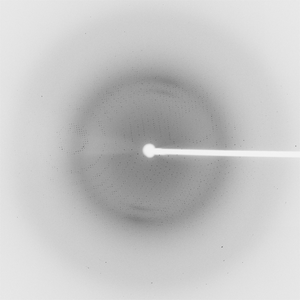

Dataset 125749_2_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
147.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-07-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

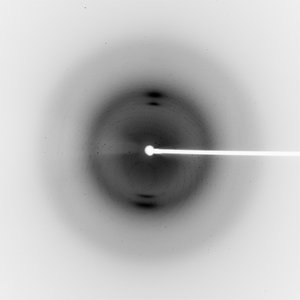

Dataset 125749_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
192.0 |
| Wavelength [Å] |
0.97882 |
| Experiment Date |
2009-07-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
