Diffraction project datasets PU10172A_3fjv

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 21 21 21
Download all images (3.5 GB)

PDB website for 3FJV
PDB validation report for 3FJV

doi:10.18430/M33FJV

Project details

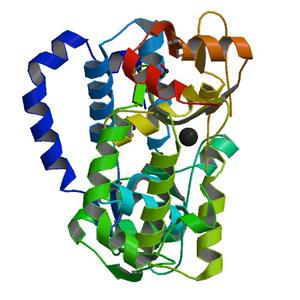

Title Crystal structure of novel protein of unknown function (YP_111841.1) from BURKHOLDERIA PSEUDOMALLEI K96243 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 35.78 x 90.82 x 131.93
Unit cell angles [°] 90.0, 90.0, 90.0

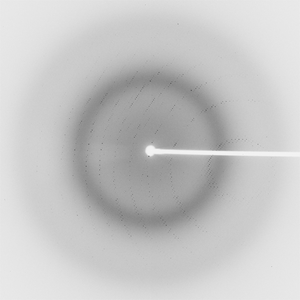

Dataset 100666_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 61.0
Wavelength [Å] 0.97871
Experiment Date 2008-11-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

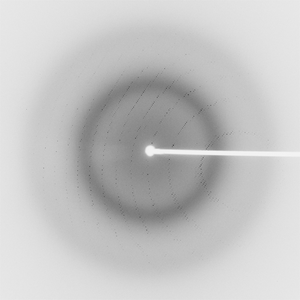

Dataset 100666_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 61.0
Wavelength [Å] 0.91162
Experiment Date 2008-11-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

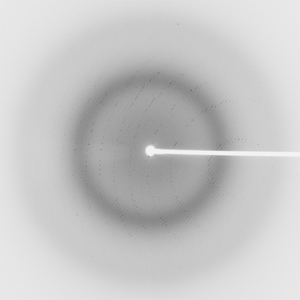

Dataset 100666_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 61.0
Wavelength [Å] 0.97808
Experiment Date 2008-11-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
