Diffraction project datasets PTPN11_5df6
- Resolution: 1.78 Å
- Space group: P 1 21 1
PDB website for 5DF6
PDB validation report for 5DF6
doi:10.18430/m35df6
Project details

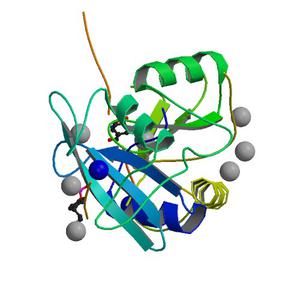

| Title | Crystal structure of PTPN11 tandem SH2 domains in complex with a TXNIP peptide |
| Authors | Dong, A., Li, W., Tempel, W., Liu, Y., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 28.47 x 72.17 x 62.55 |
| Unit cell angles [°] | 90.0, 101.8, 90.0 |

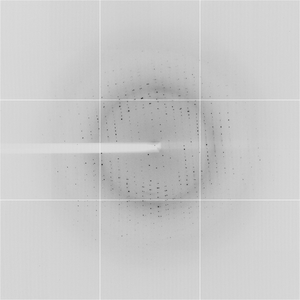

Dataset p2_4_11r1.####.img details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -100.0 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2015-06-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
