Diffraction project datasets PT06314A_3cmb

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: I 2 2 2
Download all images (8.4 GB)

PDB website for 3CMB
PDB validation report for 3CMB

doi:10.18430/M33CMB

Project details

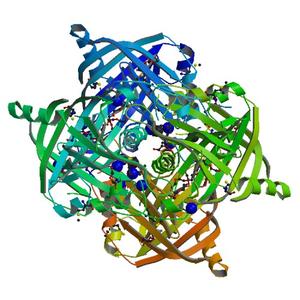

Title Crystal structure of acetoacetate decarboxylase (YP_001047042.1) from Methanoculleus marisnigri JR1 at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 129.34 x 136.71 x 168.12
Unit cell angles [°] 90.0, 90.0, 90.0

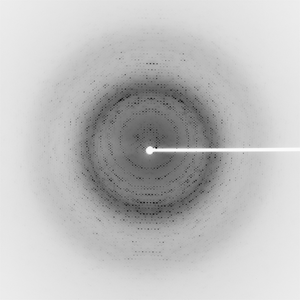

Dataset 70941_1_E1_###.mccd details

Number of frames 181 (1 - 181)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 75.0
Wavelength [Å] 0.97941
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

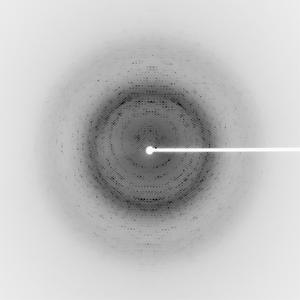

Dataset 70941_1_E2_###.mccd details

Number of frames 181 (1 - 181)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 75.0
Wavelength [Å] 0.91837
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

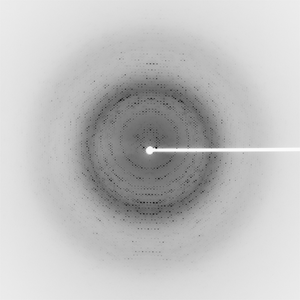

Dataset 70941_2_###.mccd details

Number of frames 181 (1 - 181)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 75.0
Wavelength [Å] 0.97874
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
