Diffraction project datasets PT05853A_3fa5
Project details
| Title |

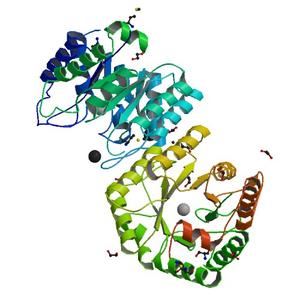

CRYSTAL STRUCTURE OF a DUF849 family protein (PDEN_3495) FROM PARACOCCUS DENITRIFICANS PD1222 AT 1.90 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.21 / 0.25 |
| Unit cell edges [Å] |
92.58 x
139.57 x
45.76
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

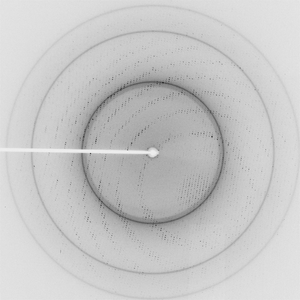

Dataset 95462_1_E1.#### details
| Number of frames |
62 (1 - 62) |
| Distance [mm] |
260.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

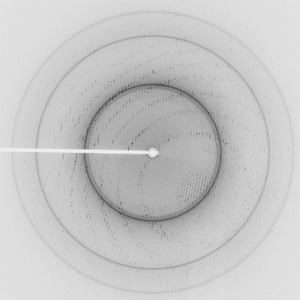

Dataset 95462_1_E2.#### details
| Number of frames |
62 (1 - 62) |
| Distance [mm] |
260.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

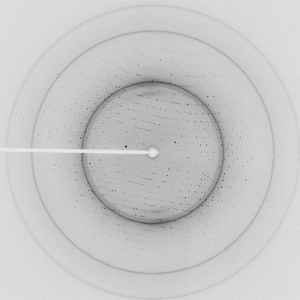

Dataset 95462_2_E1.#### details
| Number of frames |
62 (1 - 62) |
| Distance [mm] |
260.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
82.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

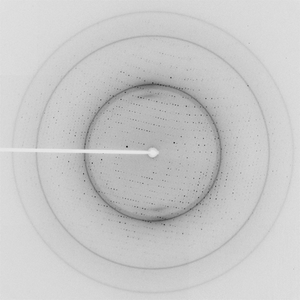

Dataset 95462_2_E2.#### details
| Number of frames |
62 (1 - 62) |
| Distance [mm] |
260.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
82.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

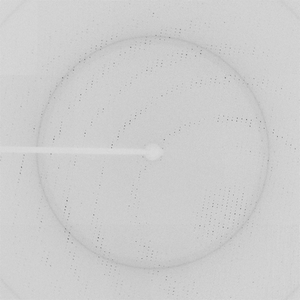

Dataset 95462_3.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
440.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-12 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|
