Diffraction project datasets PL9887A_3llx

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: I 4 2 2
Download all images (4.4 GB)

PDB website for 3LLX
PDB validation report for 3LLX

doi:10.18430/M33LLX

Project details

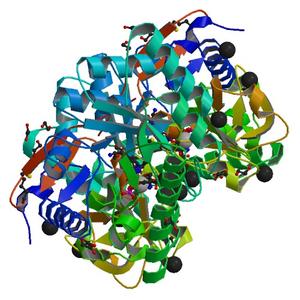

Title Crystal structure of an ala racemase-like protein (il1761) from idiomarina loihiensis at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 109.56 x 109.56 x 173.32
Unit cell angles [°] 90.0, 90.0, 90.0

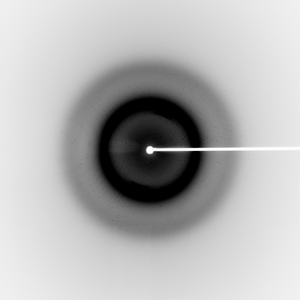

Dataset 136442_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 22.0
Wavelength [Å] 0.97946
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

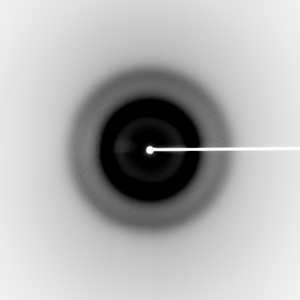

Dataset 136442_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 22.0
Wavelength [Å] 0.91837
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

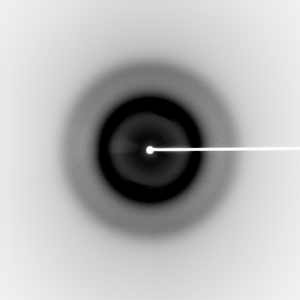

Dataset 136442_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 22.0
Wavelength [Å] 0.97929
Experiment Date 2009-11-06
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
