Diffraction project datasets PK6406E_3egr

  • Method: MAD
  • Resolution: 2.65 Å
  • Space group: P 61 2 2
Download all images (2.7 GB)

PDB website for 3EGR
PDB validation report for 3EGR

doi:10.18430/M33EGR

Project details

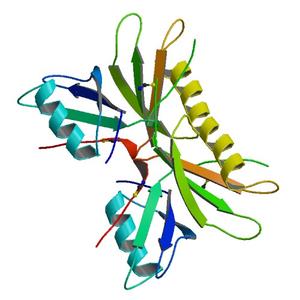

Title CRYSTAL STRUCTURE OF A PHENYLACETATE-COA OXYGENASE SUBUNIT PAAB (REUT_A2307) FROM RALSTONIA EUTROPHA JMP134 AT 2.65 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 93.26 x 93.26 x 114.70
Unit cell angles [°] 90.0, 90.0, 120.0

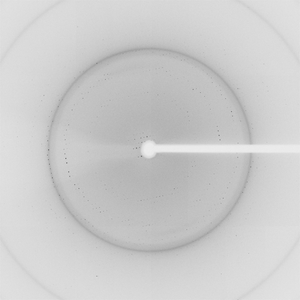

Dataset 88378_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 42.0
Wavelength [Å] 0.97966
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

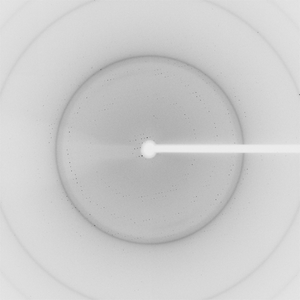

Dataset 88378_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 42.0
Wavelength [Å] 0.91162
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

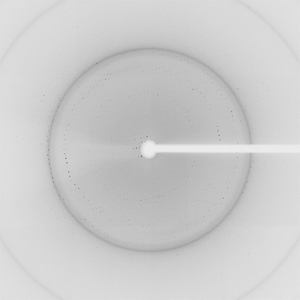

Dataset 88378_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 42.0
Wavelength [Å] 0.97951
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
