Diffraction project datasets PJ07336D_3h0n
- Method: MAD
- Resolution: 1.45 Å
- Space group: C 1 2 1
PDB website for 3H0N
PDB validation report for 3H0N
doi:10.18430/M33H0N
Project details

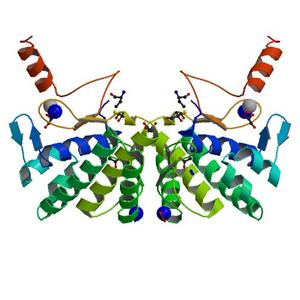

| Title | Crystal structure of a duf1470 family protein (jann_2411) from jannaschia sp. ccs1 at 1.45 A resolution |
| Authors | Bakolitsa, C., Bateman, A., Jin, K.K., McMullan, D., Krishna, S.S., Miller, M.D., Abdubek, P., Acosta, C., Astakhova, T., Axelrod, H.L., Burra, P., Carlton, D., Chiu, H.J., Clayton, T., Das, D., Deller, M.C., Duan, L., Elias, Y., Feuerhelm, J., Grant, J.C., Grzechnik, A., Grzechnik, S.K., Han, G.W., Jaroszewski, L., Klock, H.E., Knuth, M.W., Kozbial, P., Kumar, A., Marciano, D., Morse, A.T., Murphy, K.D., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H., Trame, C.B., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 77.75 x 59.67 x 57.82 |
| Unit cell angles [°] | 90.0, 128.8, 90.0 |

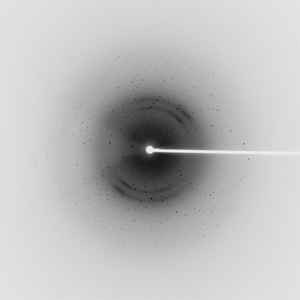

Dataset 49893_1_E1_###.mccd details
| Number of frames | 145 (1 - 145) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 108.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

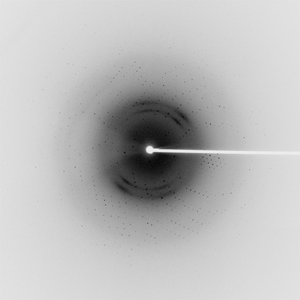

Dataset 49893_1_E2_###.mccd details
| Number of frames | 145 (1 - 145) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 108.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 49893_2_###.mccd details
| Number of frames | 145 (1 - 145) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 108.0 |
| Wavelength [Å] | 0.97879 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
