Diffraction project datasets PJ06938A_2re3
- Method: MAD
- Resolution: 2.5 Å
- Space group: P 43 21 2
PDB website for 2RE3
PDB validation report for 2RE3
doi:10.18430/M32RE3
Project details

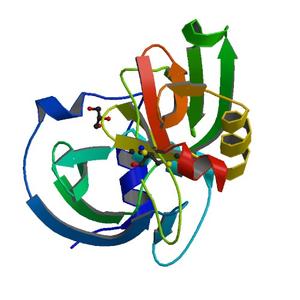

| Title | CRYSTAL STRUCTURE OF a DUF1285 family protein (SPO_0140) FROM SILICIBACTER POMEROYI DSS-3 AT 2.50 A RESOLUTION |
| Authors | Han, G.W., Bakolitsa, C., Miller, M.D., Kumar, A., Carlton, D., Najmanovich, R.J., Abdubek, P., Astakhova, T., Axelrod, H.L., Chen, C., Chiu, H.J., Clayton, T., Das, D., Deller, M.C., Duan, L., Ernst, D., Feuerhelm, J., Grant, J.C., Grzechnik, A., Jaroszewski, L., Jin, K.K., Johnson, H.A., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Marciano, D., McMullan, D., Morse, A.T., Nigoghossian, E., Okach, L., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 75.37 x 75.37 x 182.69 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

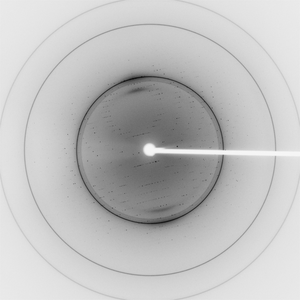

Dataset 51247_1_E1_###.mccd details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.97935 |
| Experiment Date | 2007-05-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

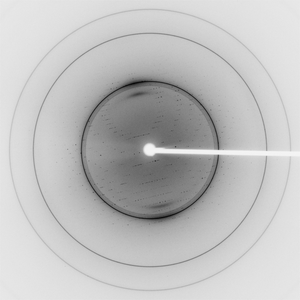

Dataset 51247_1_E2_###.mccd details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-05-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

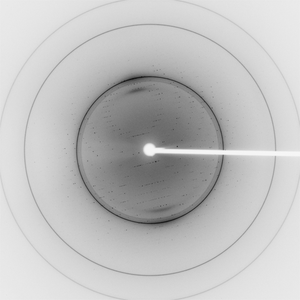

Dataset 51247_2_###.mccd details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.97908 |
| Experiment Date | 2007-05-13 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
